Wood Peeling Machine | Log Debarker | Wood Debarking Machine

Model WD-WP320
Power 7.5+2.2kw
Working speed 10m/min
Applicable wood diameter 50-320mm
Machine size 2450*1400*1700mm

The wood peeling machine also called the wood debarking machine, belongs to a series of wood processing machinery products. As its name implies, the equipment is used to peel off the bark of wood. The peeled wood is better for the further process so as to bring more profits. There is a vertical log peeling machine and a horizontal log debarker machine for sale. The vertical type applies to the wood with 5-35cm diameter. While the horizontal one can process the log not more than 30cm diameter. Both of them have their own characteristics and different models. You can choose the suitable type according to your needs.

Applicable raw materials & industries for log debarker

The wood peeling machine can debark various kinds of wood with different types, diameters, and lengths, such as eucalyptus, fruit trees, pine, locust, beech, acacia, etc. The vertical peeling machine is suitable for the wood’s diameter of 5-35cm. While the horizontal one can process not more than 30cm log diameter. The equipment is suitable for large, medium, and small paper mills, pulp mills, wood chip mills, wood processing plants, wood-based panel plants (plywood, medium-density fiberboard, density board), etc.

Vertical log debarker

Brief description of vertical wood peeling machine

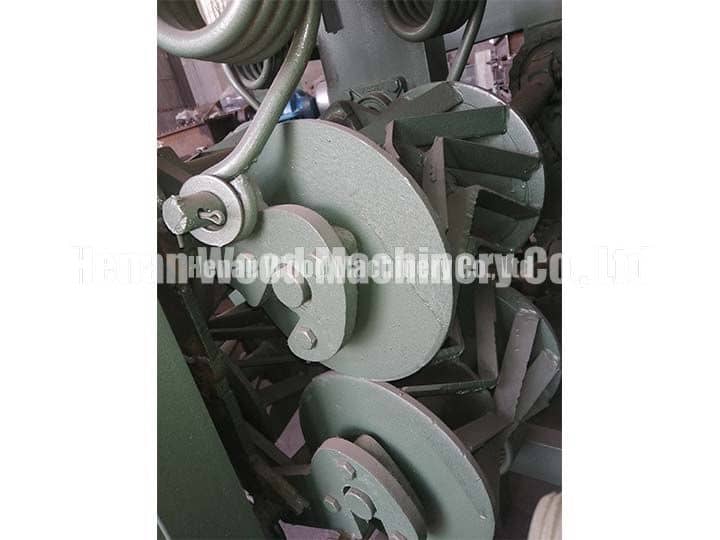

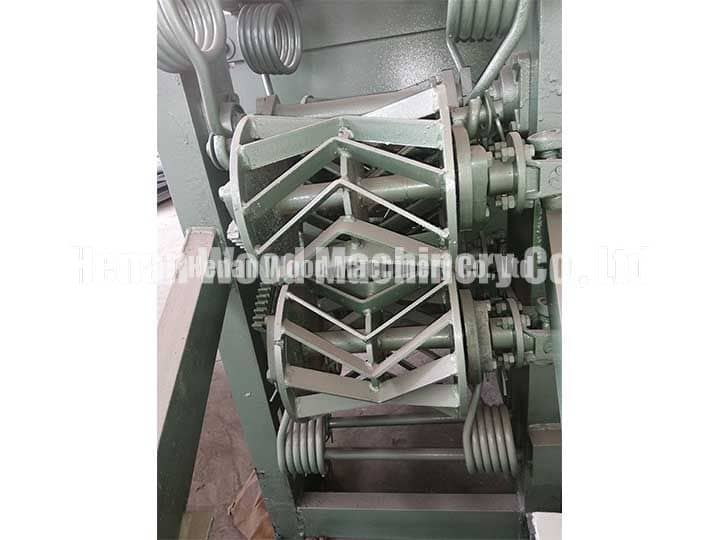

The vertical debarking machine is suitable for these logs with a diameter of the wood from 5cm to 35cm. The common raw material refers to eucalyptus, fruit trees, pine, locust, beech, acacia, and so on. The equipment mainly consists of a frame, 4 feeding rollers, a cutting disk with 4 knives, 4 discharging rollers, etc. Compared with the horizontal debarking machines, the vertical type can peel more cleanly. Every minute can handle 10m. If the wood is too long and weight, you can match with a feeding conveyor to save labor and time, improving efficiency.

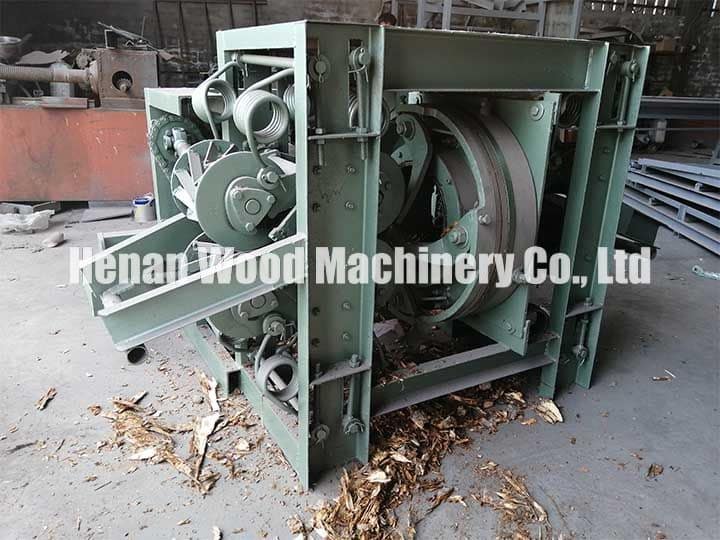

log debarker
log debarker

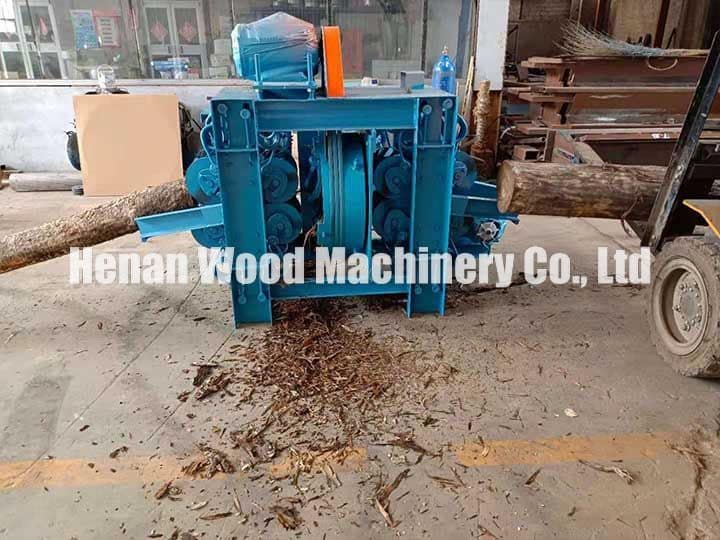

Working principle of the vertical wood debarker

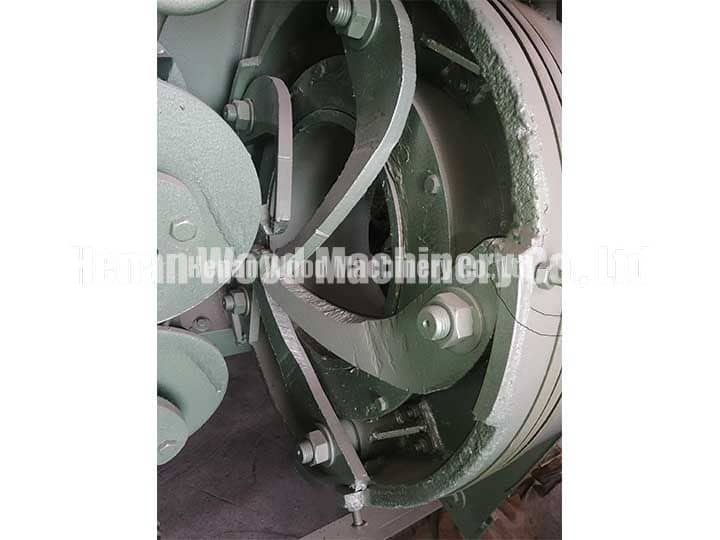

When the wood be fed into feeding rollers, it will be forced forward to cutting disk, Then the four blades will open and around the wood spinning quickly. During the process, the blades continuously act on the surface of the log to peel the bark from the wood. Finally, the peeled part will move forward and go out from the discharging rollers. The peeling effect is great, convenient to deal it further.

Working video of wood debaking machine

Customers in Chile purchased our vertical wood peelers and put them into operation immediately. After using it, they were very satisfied with the peeler and sent us a video of the machine in action. The video shows the working process using the slow motion of the blades peeling the bark of the log.

Features of vertical log debbarker

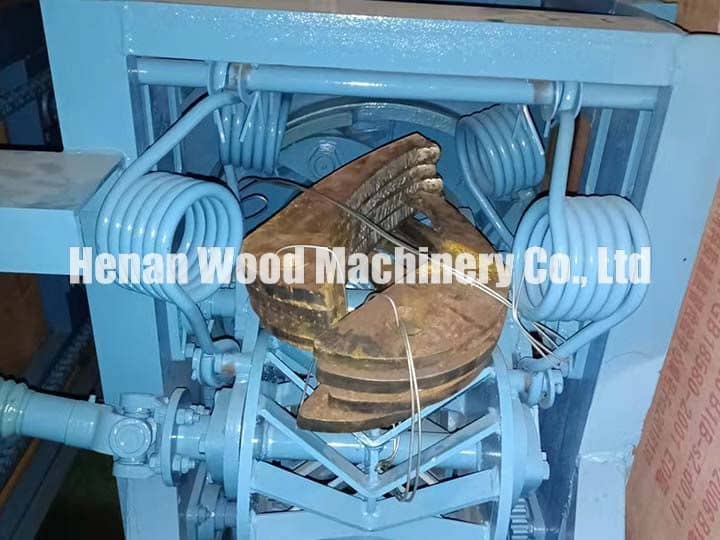

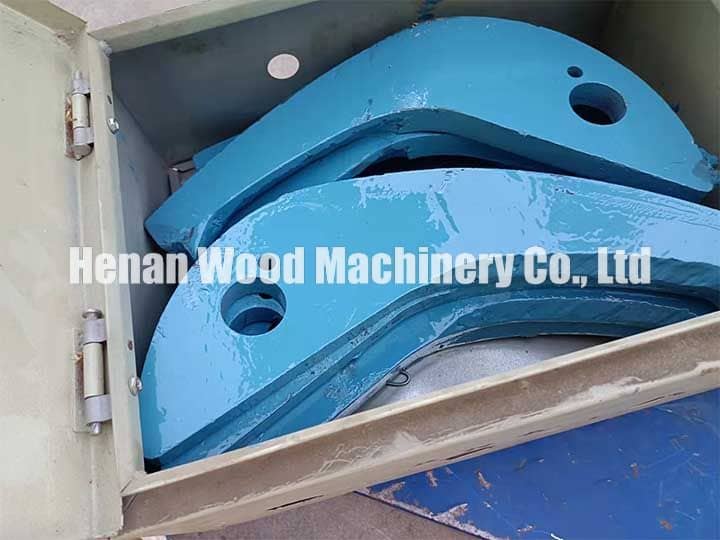

1. Vertical wood peeling machines use an open design. Feeding wood from one side, and the wood will be discharged from the other side. The log debarker designed with four blades has a high peeling degree, high productivity and small wood damage.

2.Using the vertical peeling machine, the material can be fed from one end and discharged from the other end for assembly line operation, which overcomes the need for power outages for feeding and discharging.

3. The peeling machine can handle a wide range of raw materials, and can peel wood segments of different tree species, diameters and lengths, and the peeling rate can reach 90%. The wood from the bark can be used for wood shavings, wood carving, or crushed into wood chips to make paper.

4. Because the casing is fixed, the vertical wood peeling machine has low energy consumption, small maintenance workload, and much lower vibration and noise than general peeling machines.

5. The wood debarking machine can be equipped with automatic production lines according to customer needs and site requirements. The longer log is sawed into small pieces of equal size, then equipped with a conveyor to automatically feed the material, the feeding roller will send the wood into the wood peeling machine, and then the peeled wood will be dropped by the output roller.

The technical data of vertical wood peeling machine

ModelWD-WP320WD-WP370
Power7.5+2.2kw7.5+2.2kw
Working speed10m/min10m/min
Applicable wood diameter50-320mm80-350mm
Machine size2450*1400*1700mm2450*1400*1700mm

The main difference between two models is the wood deiameters. The inlet of log debarker WD-WP320 can fit logs with 50-320mm diameters. Meanwhile, the feed port of wood peeling machine WD-WP370 can deal with diameters of 80-350mm. Besides, the other parameters of those two models are the same.

Horizontal wood debarking machine

Horizontal log debarker discription

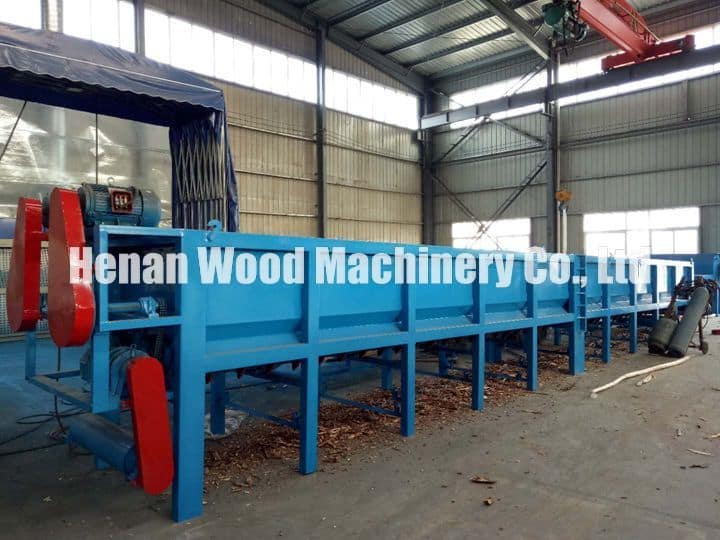

Horizontal wood log peeling machines can process various kinds of wood with a diameter not more than 30cm. The machine consists of a peeling chamber, double knife rollers (or single), double motors (or single), and a discharge port. The raw materials is logs or branches with small diameter and curved shape. It can handle many kinds of wood together even if they are different sizes. The common length of the machine’s debarking chamber is 5m, 6m, 12m, etc. And it can be lengthened based on customers’ needs. Besides, it adopts durable material with a long service time.

horizontal-log-debarker
horizontal-log-debarker

How does the horizontal wood debarker work?

Put the raw materials into the peeling chamber manually or by machine. The knife rollers rotate around their own axis to rub the surface of these woods to make them roll irregularly. Under the rubbing between blade rollers and wood, wood and wood, and wood and the machine, the barks of these logs are peeled off quickly.

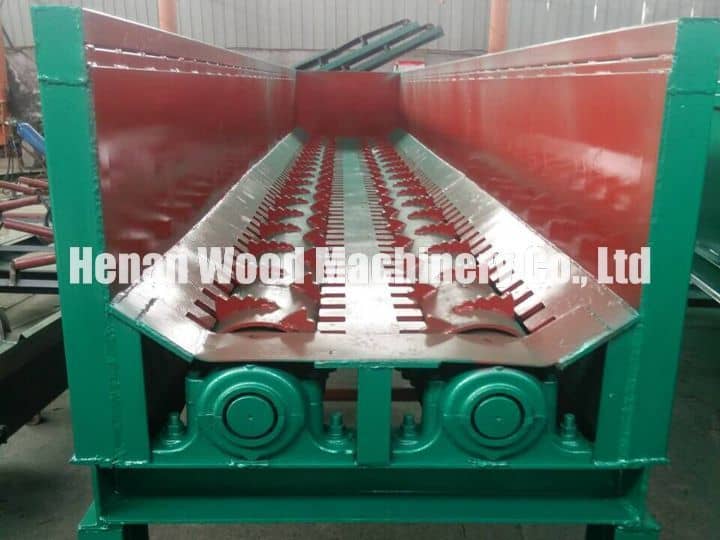

double-knife-rollers-of-horizontal-wood-debarker
double-knife-rollers-of-horizontal-wood-debarker

Advantages of horizontal wood debarking machine

The horizontal debarking machine has a large processing capacity, high working efficiency, strong structure, and wear-resistant manufacturing materials. Besides, the equipment can handle different sizes of wood from small to big together. But it can not reach an excellent peeling effect as same as the vertical peeling machine. Therefore, it’s better to choose the vertical type if you have high requirements about the peeling degree.

Parameters of horizontal wood peeling machine

Model6m (single roller)6m (double rollers)9m (double rollers)12m (double rollers)
Capacity3-7t/h7-15t/h15-25t/h25-30t/h
Power7.5kw7.5*2kw7.5*2kw7.5*2kw
Length6300mm6300mm9000mm12600mm
Width1200mm1310mm1500mm1550mm
Height1500mm1550mm1600mm1650mm

Power modes of log debarker

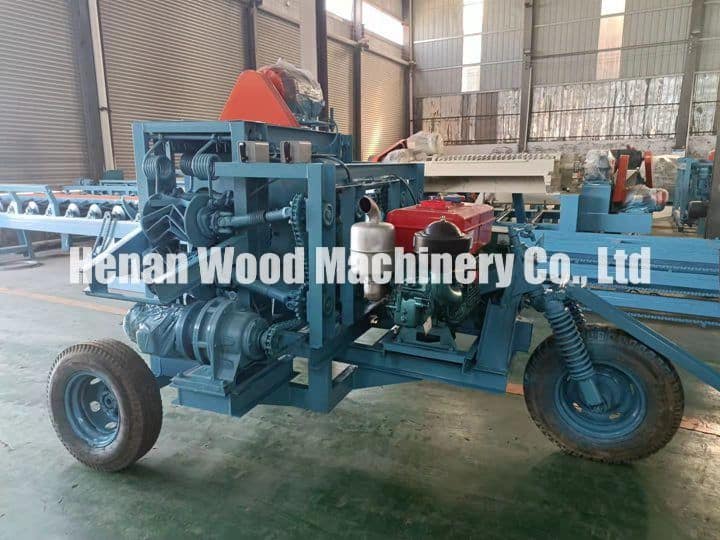

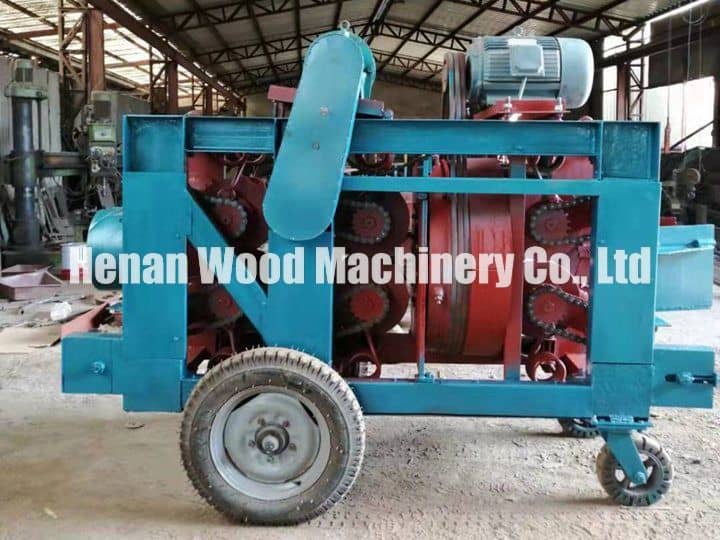

We provide two options of driven supply devices, electric motor or diesel engine. The electric motor is small in size, has low noise, and needs to connect to the power supply. It is limited by geography, such as fieldwork far from the power source. While diesel engine has strong power, strong and durable, working reliably, applying for fieldwork without electricity. But its noise is loud, and the diesel engine is uneasy to start in winter. You can choose the suitable one according to your actual situation. If you have any questions or misgivings, welcome to consult us.

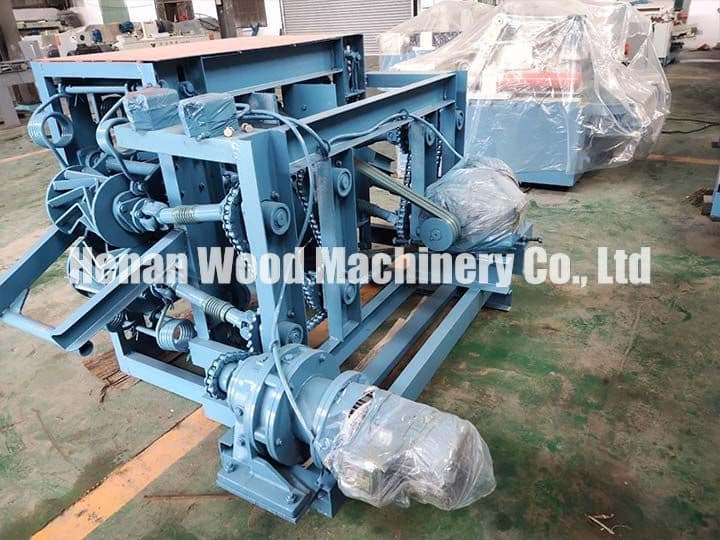

Loading and delivery of wood peeling machine
